Product Features

cs10Robust?durability housing: High?pressure die?cast aluminum housing
Whole?luminaire protection degree: IP66
Impact resistance: up to IK09
cs12Multiple beam angles: Narrow beam: 30°
Medium beam: 60°
Wide beam: 90°
Ultra?narrow beam: 8°
cs13Asymmetric beam: IP66 light?source cavity
The luminaire adopts optical design with lens plus tempered?glass protection.
Easy?to?clean luminaire light?emitting surface
cs14

High?strength mounting bracket: The luminaire has passed 100,000?cycle 3?dimensional mechanical vibration test at 5?g gravitational acceleration.

Robust and reliable


Product Specifications

  • Optical Parameters

    Luminaire luminous flux: 14,160?84,000?lm
    Beam angle: 8°/15°/30°/60°/90°
    Asymmetric luminous efficacy: 118?140?LPW
    Color temperature: 2700K?6500K
    Color rendering index: Ra＞75

  • Luminaire Construction

    Luminaire housing: High?pressure die?cast aluminum housing with electrostatic?sprayed anti?corrosion polyester paint coating on surface.
    Optics: Dual?layer optical structure with high?transmittance PC lens and tempered glass, available in 8°/15°/30°/60°/90° and asymmetric beam angles.

  • Electrical Parameters

    Input Voltage: 110?277 VAC
    Frequency: 50/60?Hz
    Power Factor: ＞0.95 @220?V
    Total Harmonic Distortion: ≤20%

  • Product Versions

    Ingress Protection: IP66 & IK09 Ambient Temperature: ?30～50?°C Surge Protection
    Built?in Driver: L?N: 6?KV; L/N?G: 10?KV External (Optional): 10?KV / 20?KV

  • Product Standards

    Luminaire: IEC 60598?1, IEC 60598?2?5, IEC 55015, IEC 61547
    Vibration: GB/T 2423.10?2008
    Salt Mist: IEC 60068?2?11:1981

  • Accessories

    Anti?fall safety rope (Standard): 304 stainless steel, length 1?m, wire diameter 2?mm (120?240?W), 3?mm (300?600?W)
    Bracket rubber shock?absorbing pad (Standard)
    Glare shield (Optional)

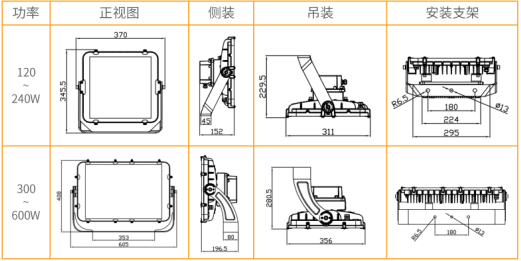

  • 灯具尺寸

    cc

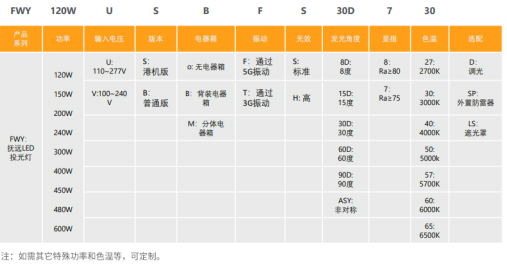

  • 编码规定

    bmgz

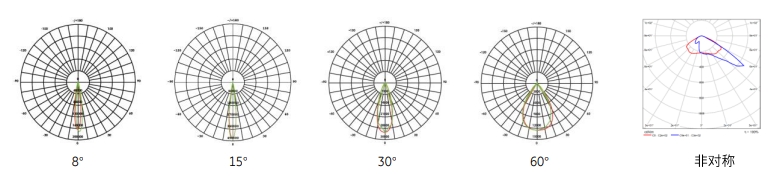

  • 配光曲线

    pgqx

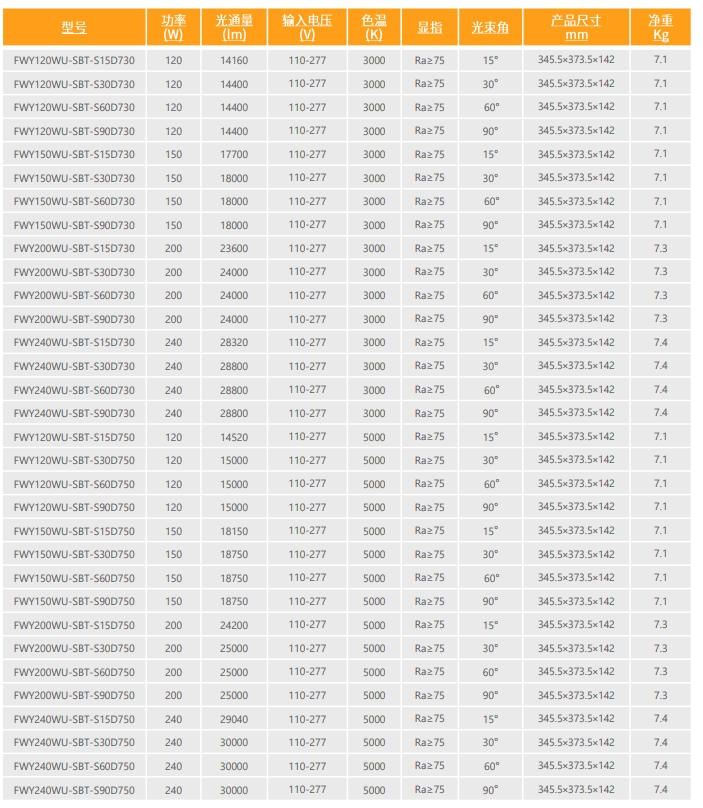

  • 订购编码

    djbm
